Our Products

Engineered for durability, precision, and extreme reliability. We provide the right valve for the right fit, ensuring unshakeable performance in the harshest industrial environments.

Product Categories

The Right Valve, The Right Fit
Request a Quote
Floating Ball Valve-Screwed / Socket Ends (1P)

Floating Ball Valve-Screwed / Socket Ends (1P)

Size1/2" To 2", Class 150
DesignISO 17292
Face To FaceManufacturer’s Standard
End ConnectionBSP-ISO 228-1 / NPT-ASME B1.20.01/SW-ASME B16.11
TestingAPI 598
Operator Lever

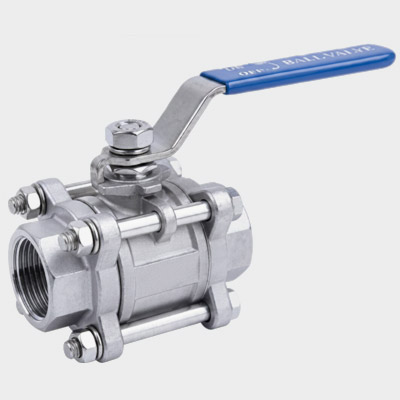

Floating Ball Valve Screwed / Socket Ends (3P)

Floating Ball Valve Screwed / Socket Ends (3P)

Size1/2" To 2", Class 150 & 300
DesignISO 17292
Face To FaceManufacturer’s Standard
End ConnectionBSP-ISO 228-1 / NPT-ASME B1.20.01/SW-ASME B16.11
TestingAPI 598
Operator Lever / Extended stem with Lever / Pneumatic Actuator

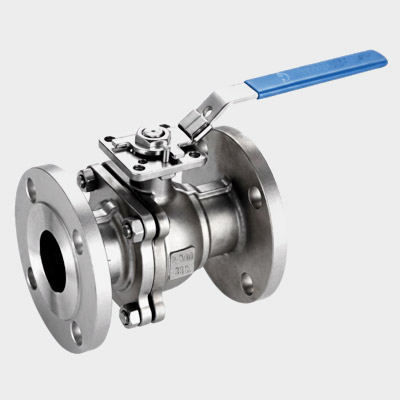

Floating Ball Valve - Flanged / Butt Weld Ends (2P/3P)

Floating Ball Valve - Flanged / Butt Weld Ends (2P/3P)

Size1/2" To 8", Class 150 & 300
DesignISO 17292 / API 6D
Face To FaceASME B16.10
End ConnectionFLG - ASME B16.5 / BW - ASME B16.25
TestingAPI 598
Operator Lever / Extended stem with Lever / Pneumatic Actuator / Manual Gear Box

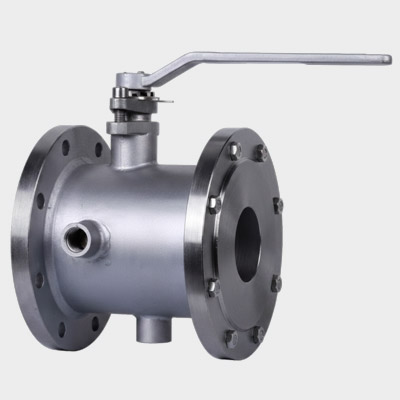

Floating Ball Valve - Flanged Ends (2P/3P) - Jacketed

Floating Ball Valve - Flanged Ends (2P/3P) - Jacketed

Size1/2" To 8", Class 150 & 300
DesignISO 17292 / API 6D
Face To FaceASME B16.10
End ConnectionFLG - ASME B16.5
TestingAPI 598
OperatorLever

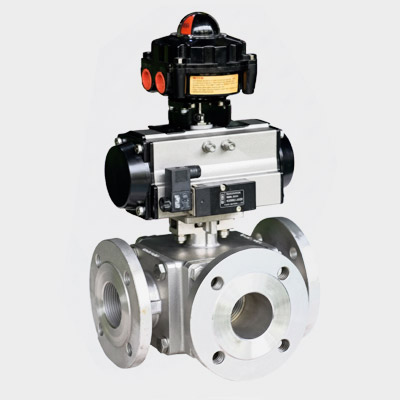

Floating Ball Valve - 3 Way

Floating Ball Valve - 3 Way

Size1/2" To 4", Class 150 & 300
Design ISO 17292
Face To Face Manufacturer’s Standard / ASME B16.10
End Connection BSP-ISO 228-1 / NPT-ASME B1.20.01/SW-ASME B16.11 / FE - ASME B16.5
TestingAPI 598
Operator Lever / Extended stem with Lever / Pneumatic Actuator
TMBV - Flanged Butt Weld Ends (2P / 3P)

TMBV - Flanged Butt Weld Ends (2P / 3P)

Size2" To 12", Class 150 & 300
Design ISO 17292
Face To Face Manufacturer’s Standard / ASME B16.10
End Connection FLG - ASME B16.5 / BW - ASME B16.25
TestingAPI 598
Operator Lever / Extended stem with Lever / Manual Gear Box

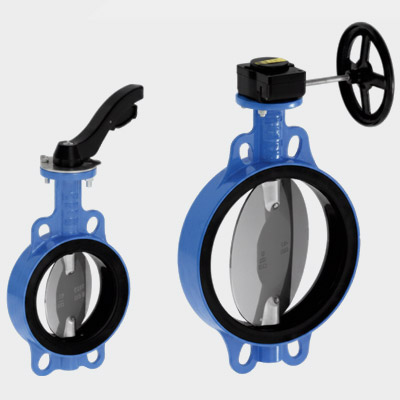

Butterfly Valve - Centric & Double Offset

Butterfly Valve - Centric & Double Offset

Size1/2" To 12", Class 150 / PN10 / PN16
DesignAPI 609 / NS 5155
Face To Face API 609
End Connection Wafer / Lugged / Double Flanged
TestingAPI 598
OperatorLever / Manual Gear Box / Pneumatic Actuator

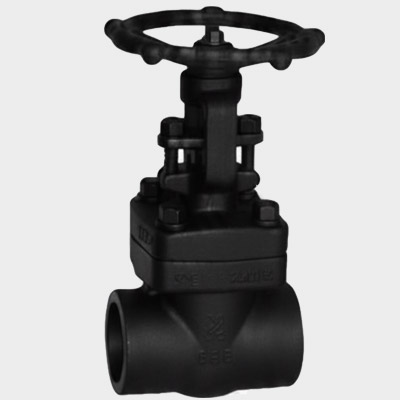

Gate Valve - Screwed / Socket Ends

Gate Valve - Screwed / Socket Ends

Size1/2" To 2", Class 800 & 1500
Design ISO 15761 / API 602
Face To FaceManufacturer’s Standard
End ConnectionBSP-ISO 228-1 / NPT-ASME B1.20.01/SW-ASME B16.11
TestingAPI 598
OperatorHandwheel / Motorized / Pneumatic Actuator / Bonnet Extension

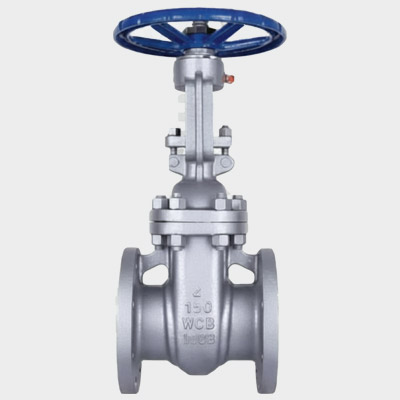

Gate Valve - Flanged / Butt Weld Ends

Gate Valve - Flanged / Butt Weld Ends

Size2" To 24", Class 150 & 300, 2" To 8" - Class 600
Design API 600
Face To FaceASME B16.10
End ConnectionFLG - ASME B16.5 / BW - ASME B16.25
TestingAPI 598
OperatorHandwheel / Motorized / Pneumatic Actuator / Bonnet Extension / Manual Gear Box

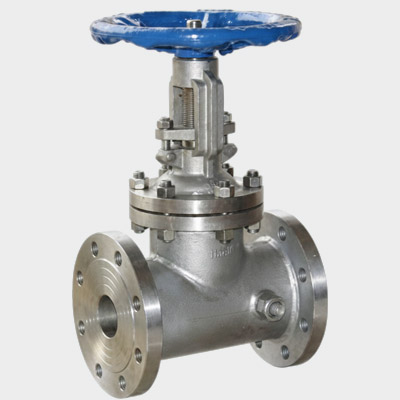

Gate Valve - Flanged Ends - Jacketed

Gate Valve - Flanged Ends - Jacketed

Size2" To 12", Class 150 & 300
Design API 600
Face To FaceASME B16.10
End ConnectionFLG - ASME B16.5
TestingAPI 598
OperatorHandwheel / Motorized / Pneumatic Actuator/ Manual Gear Box
Globe Valve - Screwed / Socket Ends

Globe Valve - Screwed / Socket Ends

Size1/2" To 12", Class 800 & 1500
DesignISO 15761 / API 602
Face To FaceManufacturer’s Standard
End ConnectionBSP-ISO 228-1 / NPT-ASME B1.20.01/SW-ASME B16.11
TestingAPI 598
OperatorHandwheel / Motorized / Pneumatic Actuator/ Bonnet Extension

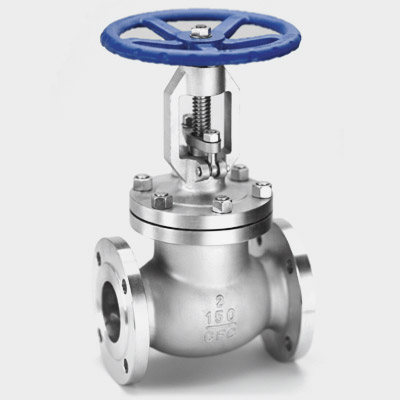

Globe Valve - Flanged / Butt Weld Ends

Globe Valve - Flanged / Butt Weld Ends

Size2" To 16", Class 150, 2" To 12" - Class 300 & 600
DesignAPI 603 / BS 1873
Face To FaceASME B16.10
End ConnectionFLG - ASME B16.5 / BW - ASME B16.25
TestingAPI 598
OperatorHandwheel / Motorized / Pneumatic Actuator/ Manual Gear Box

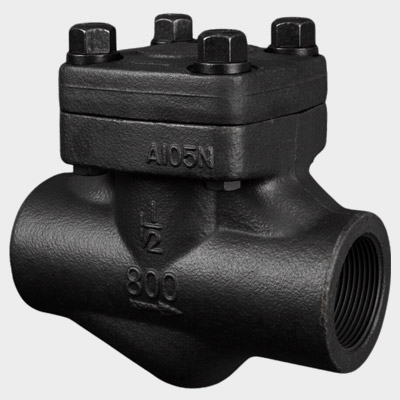

Lift Check Valve - Screwed / Socket Ends

Lift Check Valve - Screwed / Socket Ends

Size1/2" To 2", Class 800 & 1500
DesignISO 15761 / API 602
Face To FaceManufacturer’s Standard
End ConnectionBSP-ISO 228-1 / NPT-ASME B1.20.01/SW-ASME B16.11
TestingAPI 598
Operator-

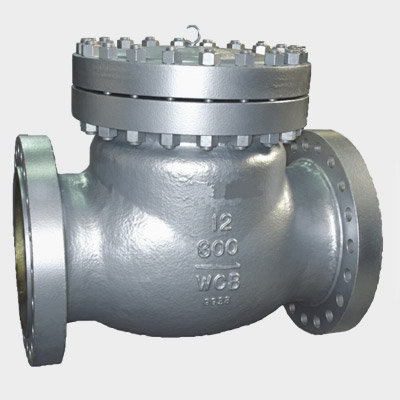

Swing Check Valve - Flanged / Butt Weld Ends

Swing Check Valve - Flanged / Butt Weld Ends

Size2" To 12", Class 150 & 300, 2" To 8" - Class 600
DesignAPI 6D / API 594 / BS 1868
Face To FaceASME B16.10
End ConnectionFLG - ASME B16.5 / BW - ASME B16.25
TestingAPI 598
Operator-

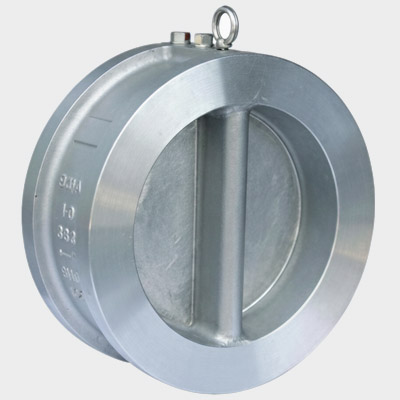

Dual Plate Check Valve

Dual Plate Check Valve

Size2" To 12", Class 150 & 300
DesignAPI 594
Face To FaceAPI 594
End ConnectionWafer / Lugged / Double Flanged
TestingAPI 598
Operator-
Disk Check Valve - Wafer Ends

Disk Check Valve - Wafer Ends

Size1/2" To 6", PN10 / PN16 / PN40
Design EN 558-1
Face To FaceEN 558
End ConnectionWafer to Suit 150#, PN10 & PN16, BS Table D
TestingAPI 598
Operator-

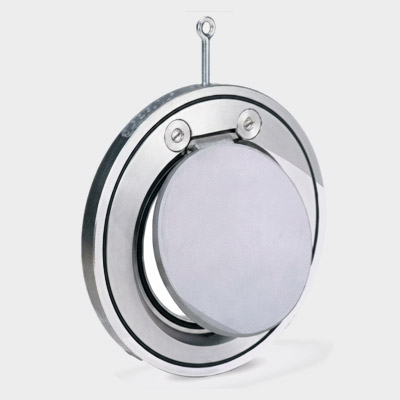

Single Plate Check Valve - Wafer Ends

Single Plate Check Valve - Wafer Ends

Size1.5" To 8", PN10 / PN16 / PN40
DesignASME B16.34
Face To FaceManufacturer’s Standard
End ConnectionWafer to Suit 150#, PN10 & PN16, BS Table D
TestingAPI 598
Operator-

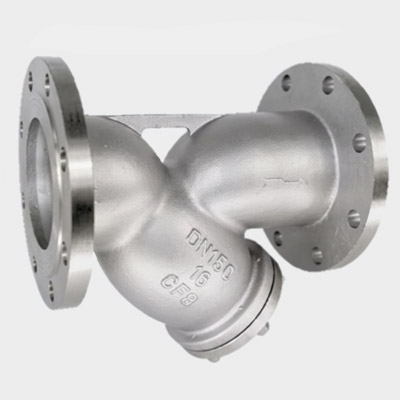

Y Type Strainer

Y Type Strainer

Size2" To 12", Class 150 & 300 & 600
DesignASME B16.24
Face To FaceManufacturer’s Standard
End ConnectionFLG - ASME B16.5
TestingAPI 598
Operator-
